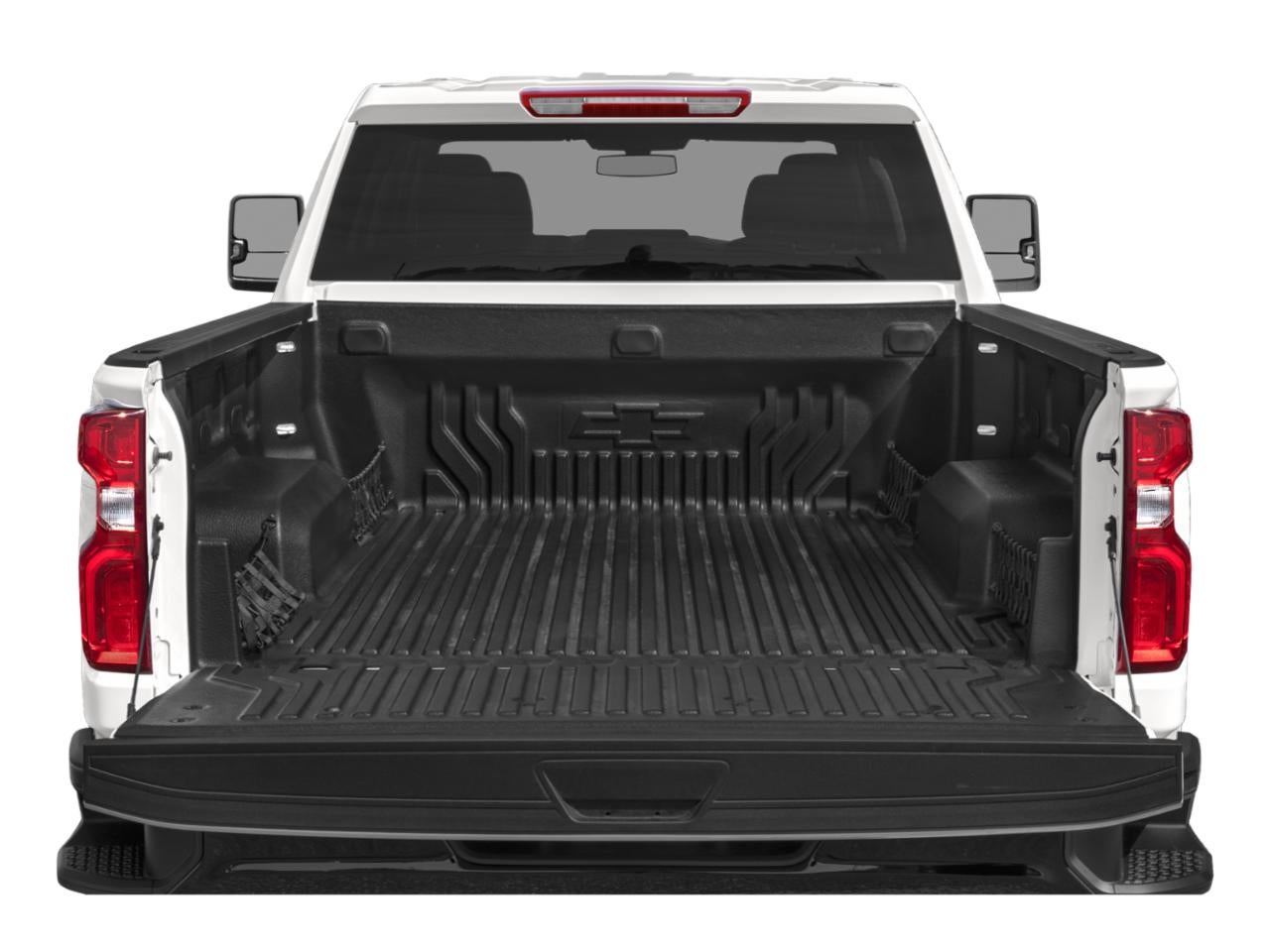

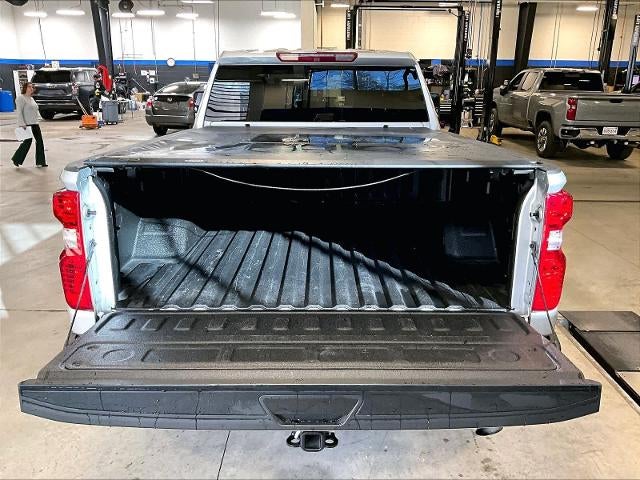

• Durabed, pickup bed
• Air filter, heavy-duty
• Air filtration monitoring
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Recovery hooks, front, frame-mounted, Black (Not available with (VLQ) Chrome recovery hooks.)
• Suspension Package
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

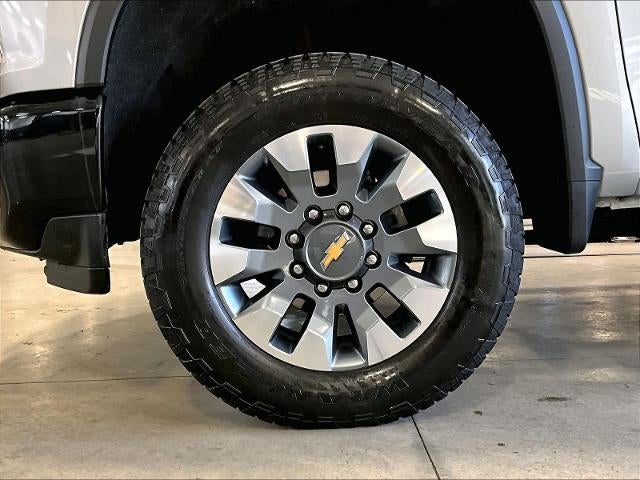

• Wheels, 20" (50.8 cm) machined aluminum with Grazen Metallic painted accents, 10-spoke
• Tires, LT275/65R20 all-terrain, blackwall
• Tire, spare LT275/70R18 all-terrain, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front (High gloss Black.)
• Bumper, rear (High gloss Black.)
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side
• Moldings, beltline, Black
• Cargo tie downs (12), fixed rated at 500 lbs per corner

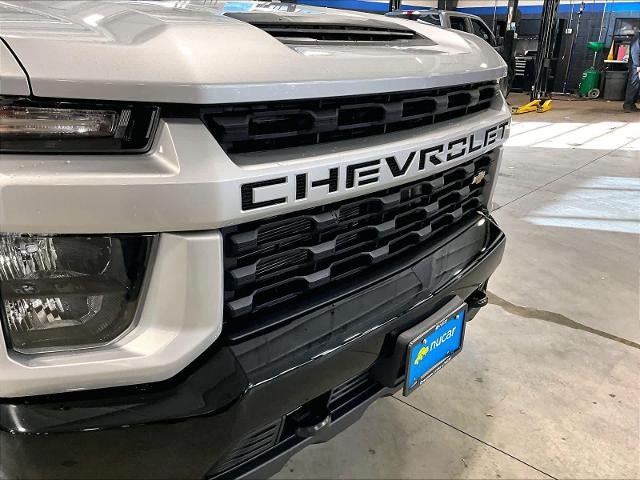

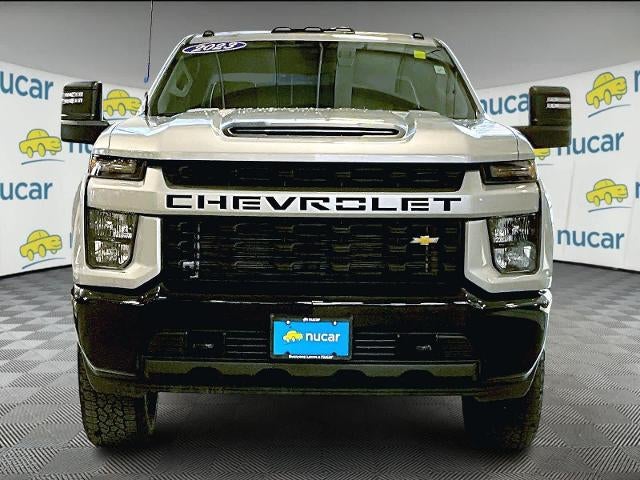

• Grille (Front grille bar with "CHEVROLET" painted body color. Includes body color surround and Black mesh inserts with small Gold bowtie emblem.)

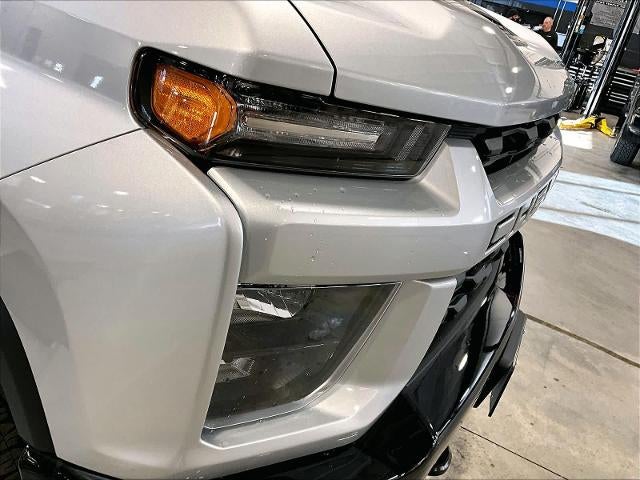

• Headlamps, halogen reflector with halogen Daytime Running Lamps

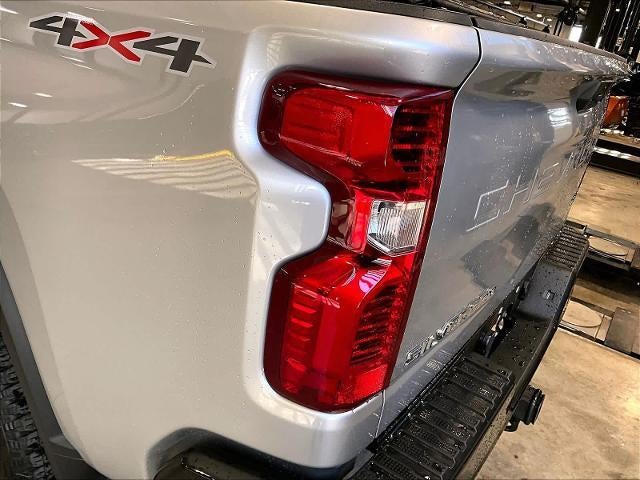

• Taillamps with incandescent tail, stop and reverse lights
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Mirrors, outside power-adjustable vertical trailering with heated upper glass, lower convex mirrors, integrated turn signals, manual folding/extending (extends 3.31" [84.25mm])
• Mirror caps, Black
• Glass, deep-tinted

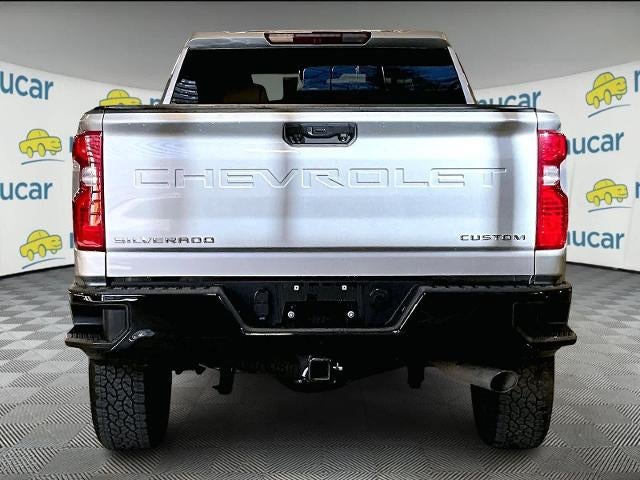

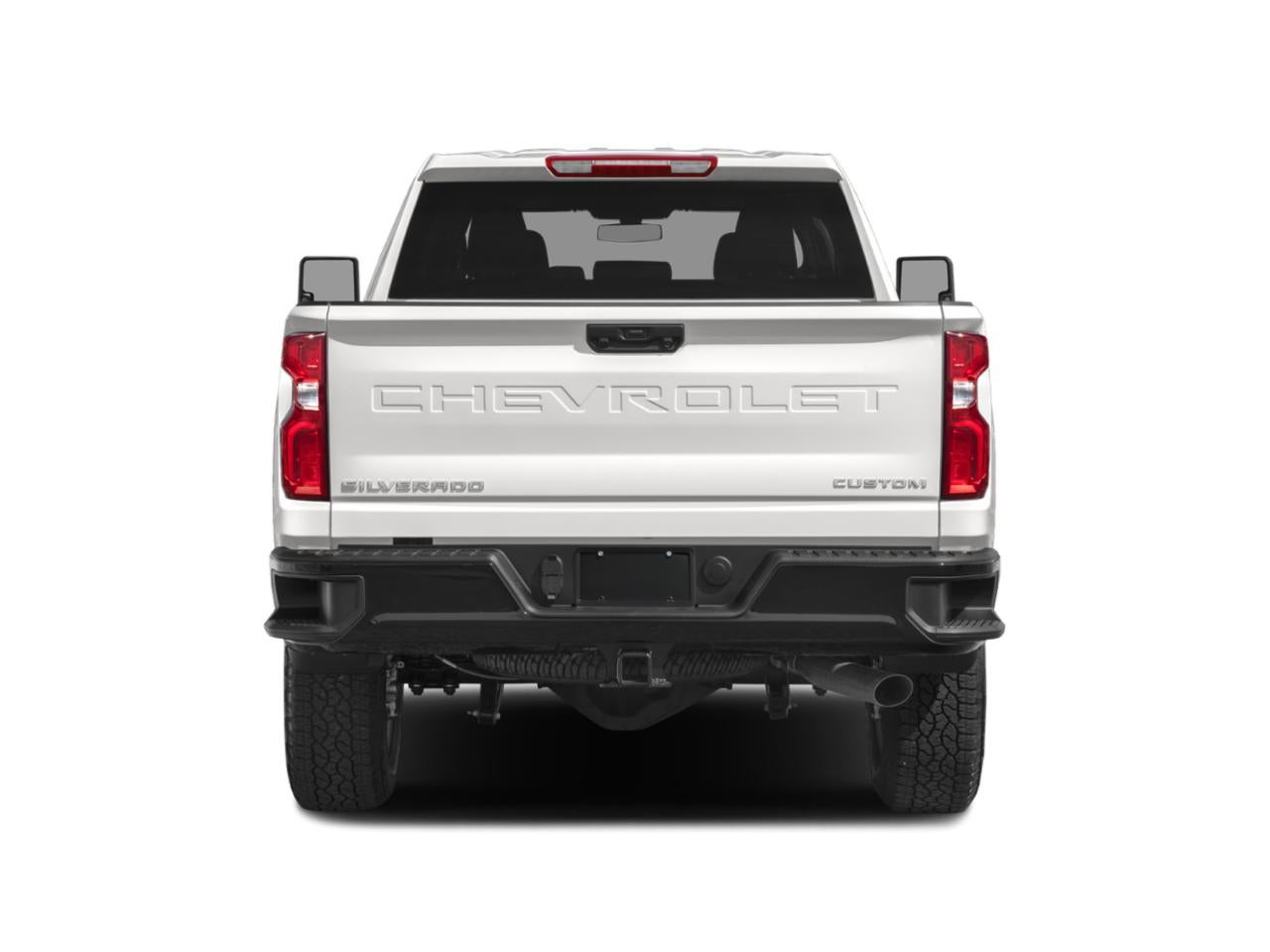

• Tailgate, standard
• Tailgate and bed rail protection cap, top
• Tailgate, locking, utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCX) Custom Convenience Package is ordered.)
• Tailgate, gate function manual, no EZ Lift

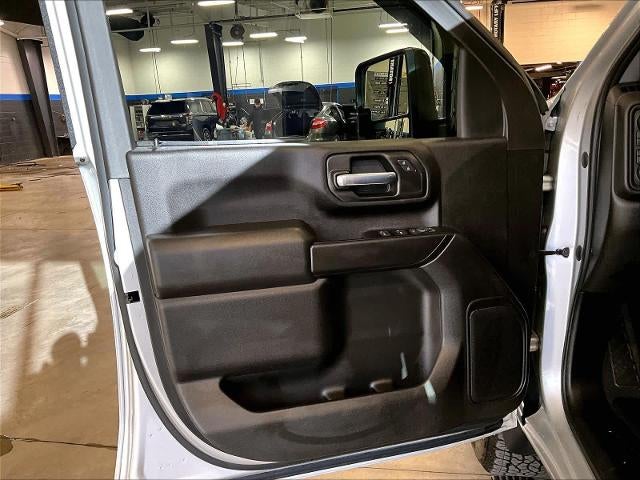

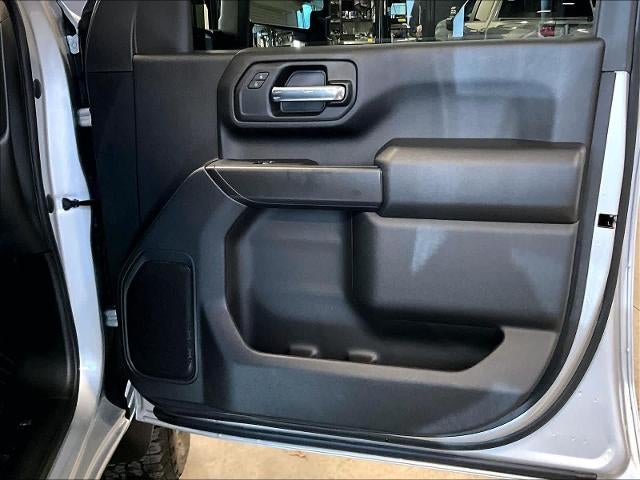

• Door handles, Black grained
• Hood Insulator

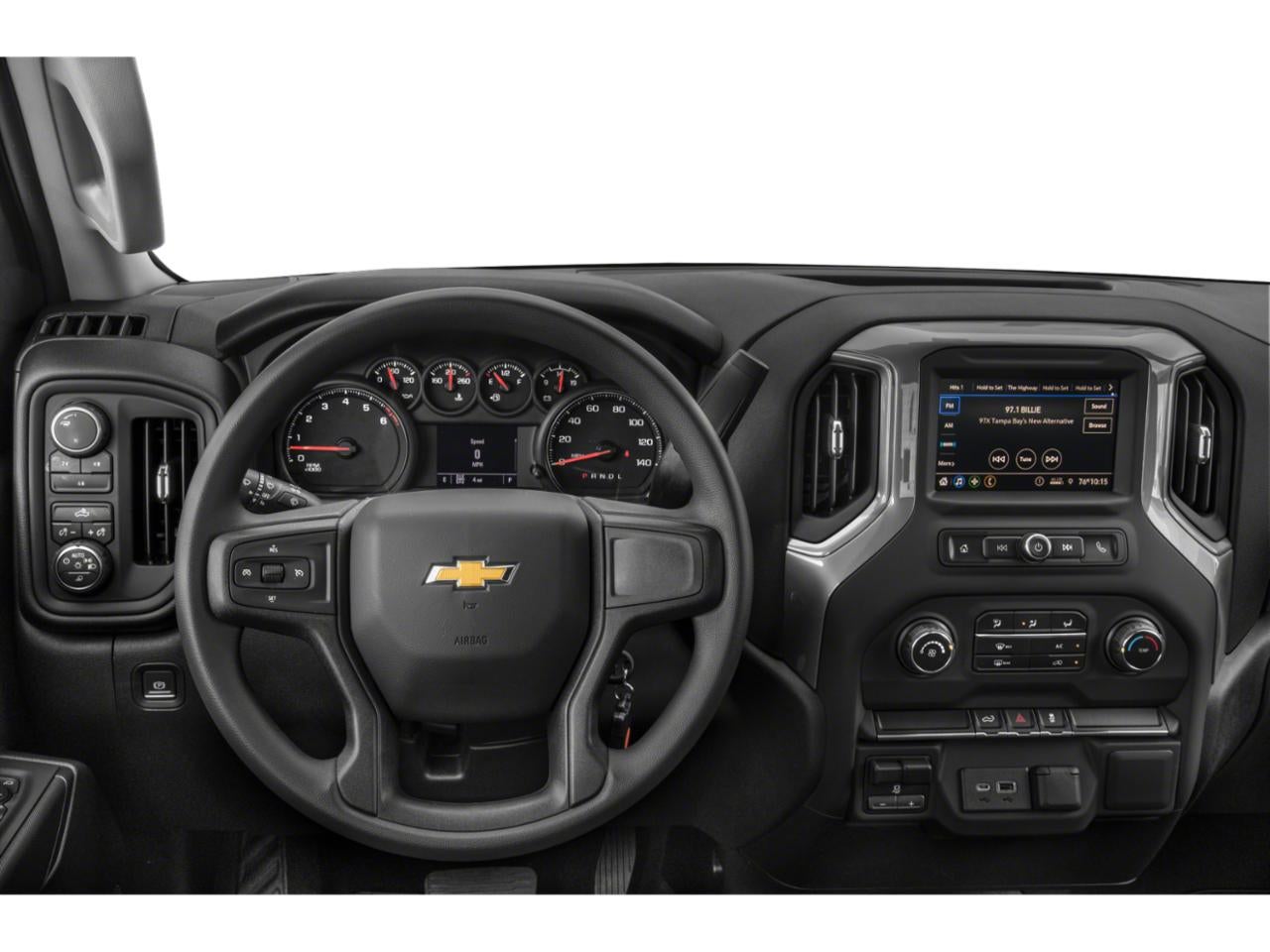

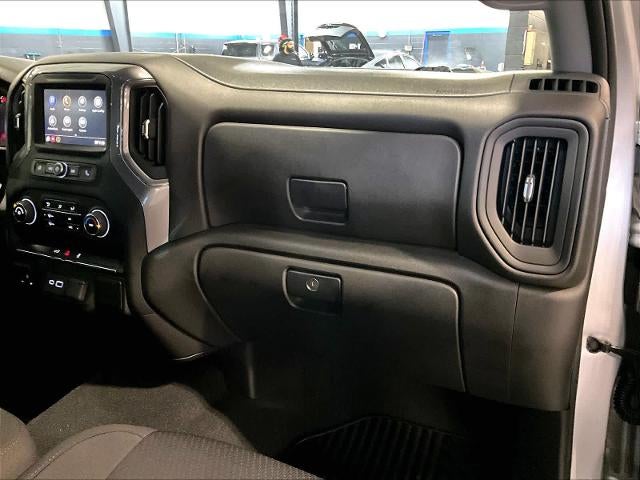

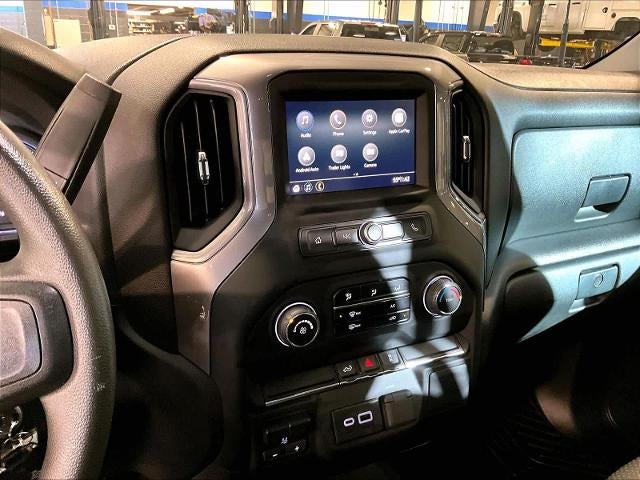

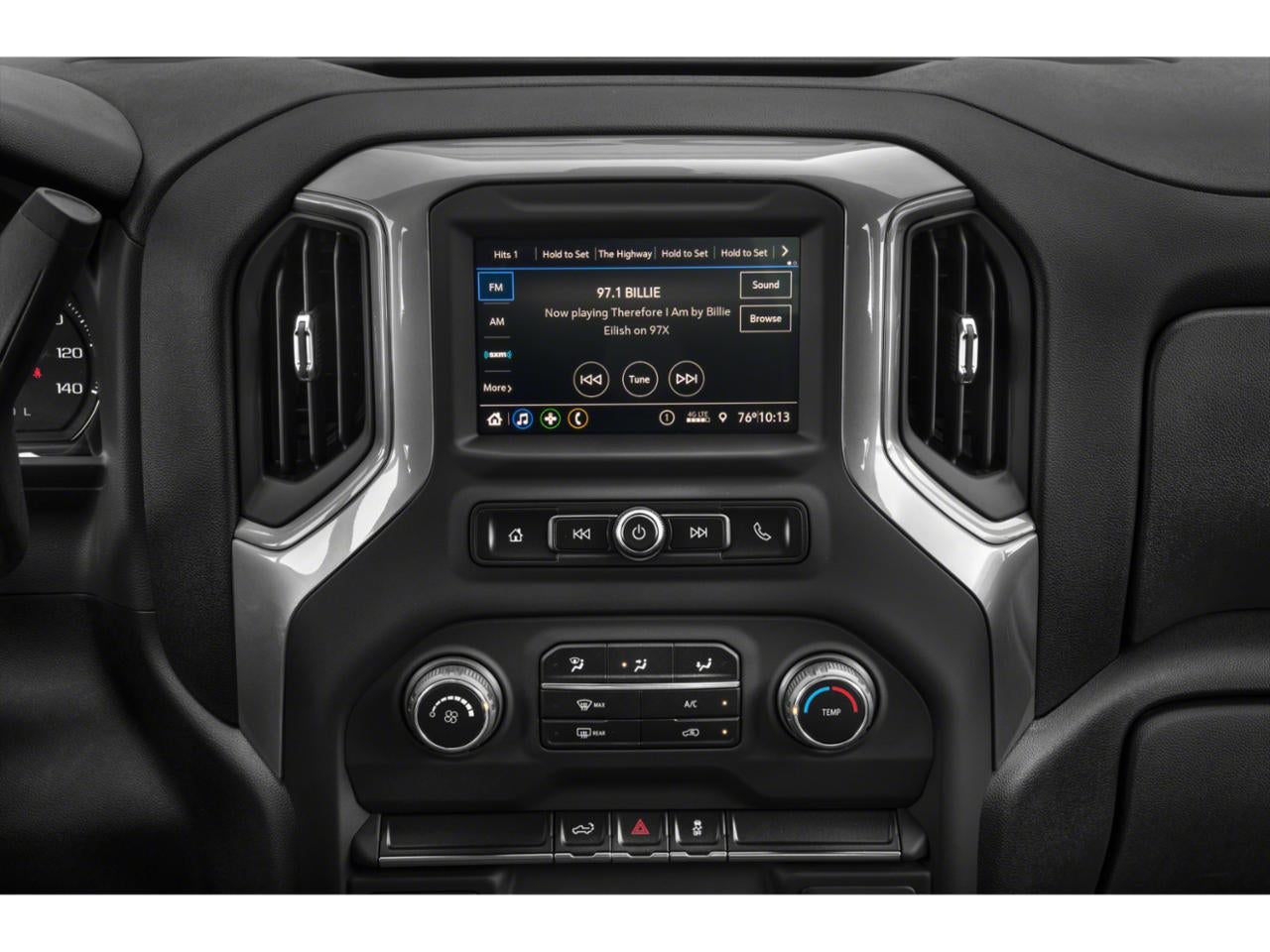

• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, wired Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system
• Bluetooth® for phone connectivity to vehicle infotainment system

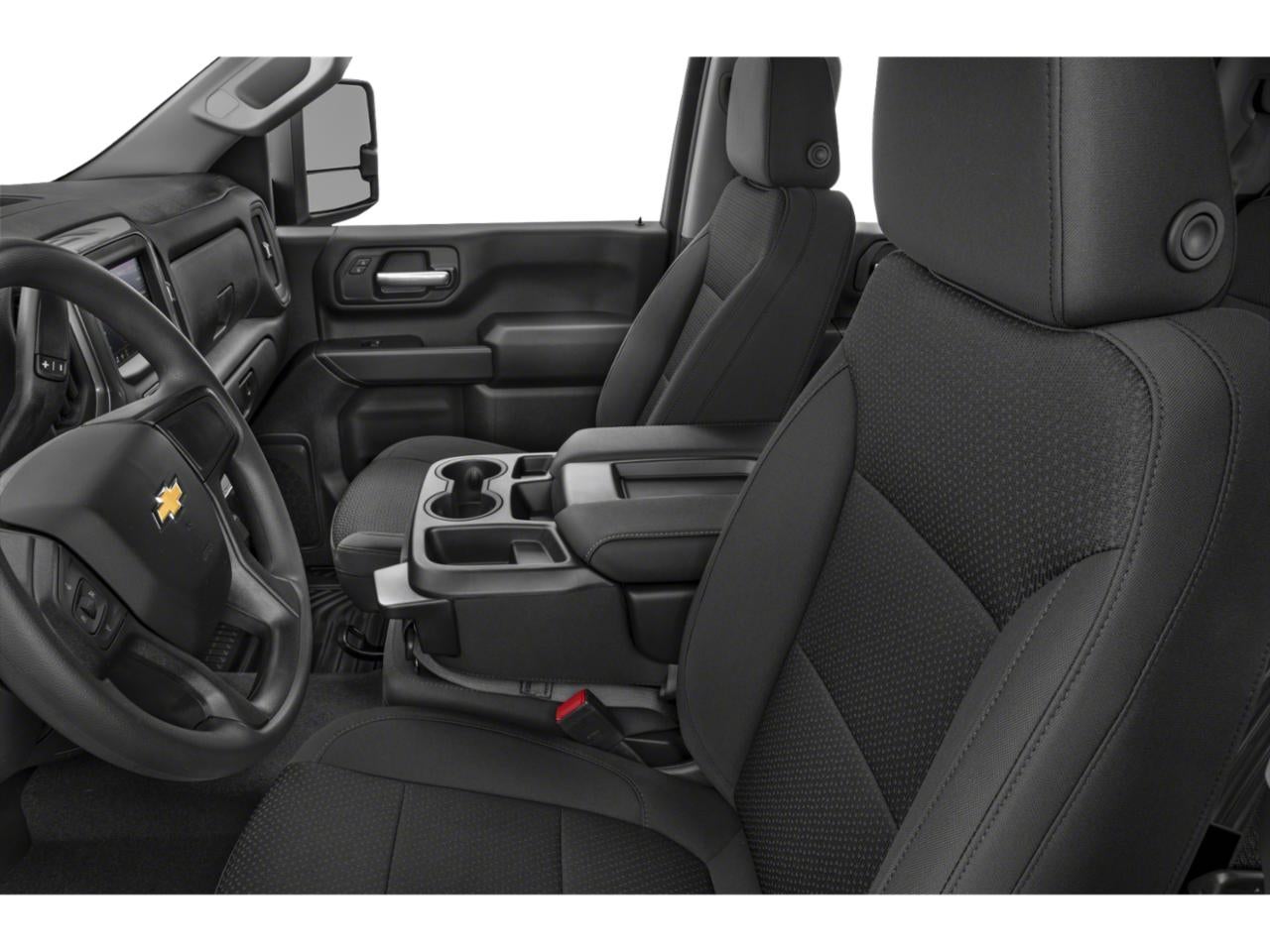

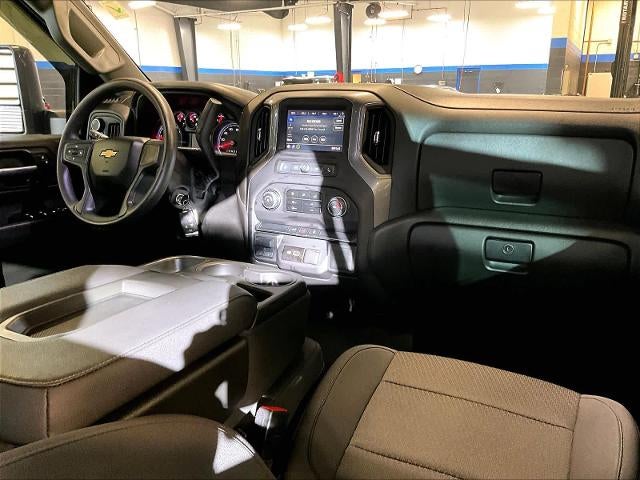

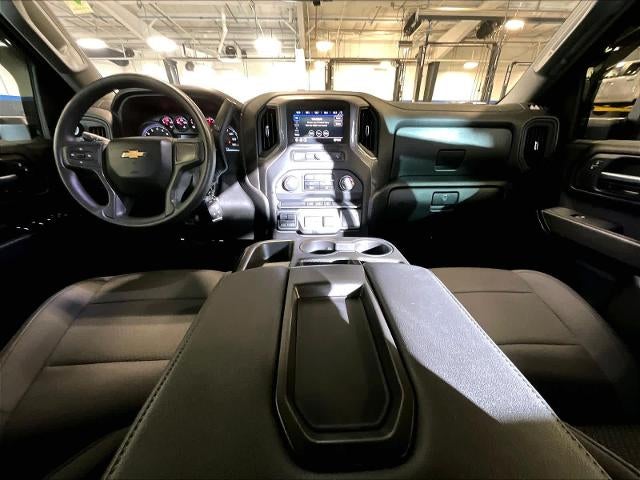

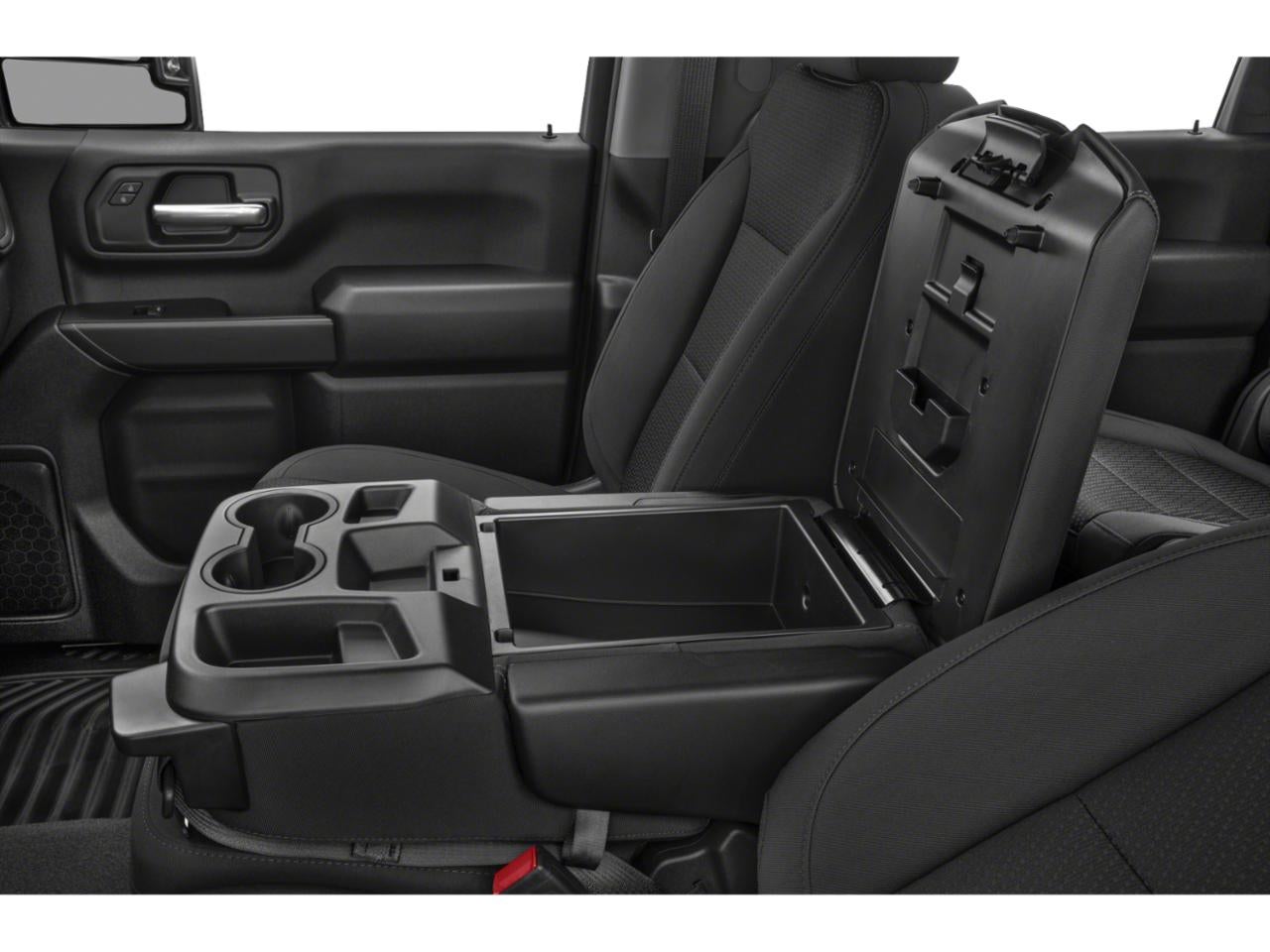

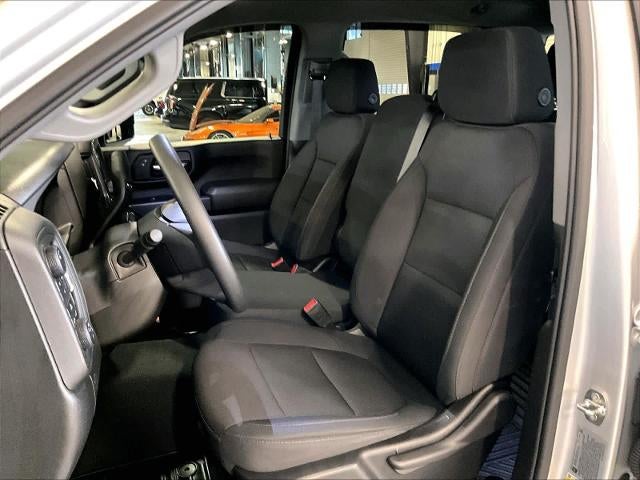

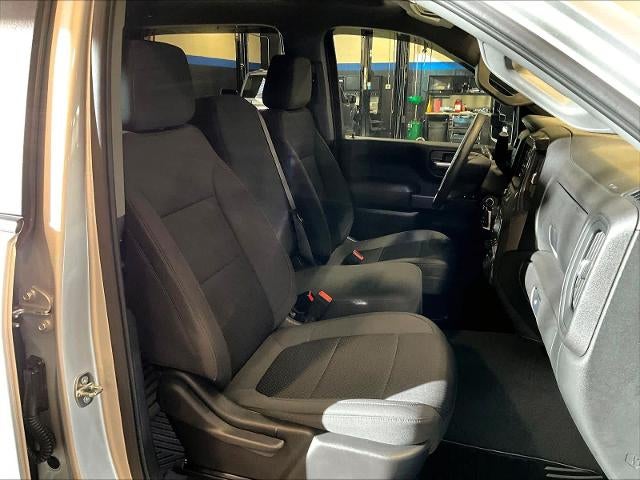

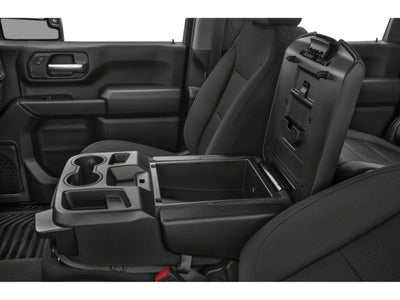

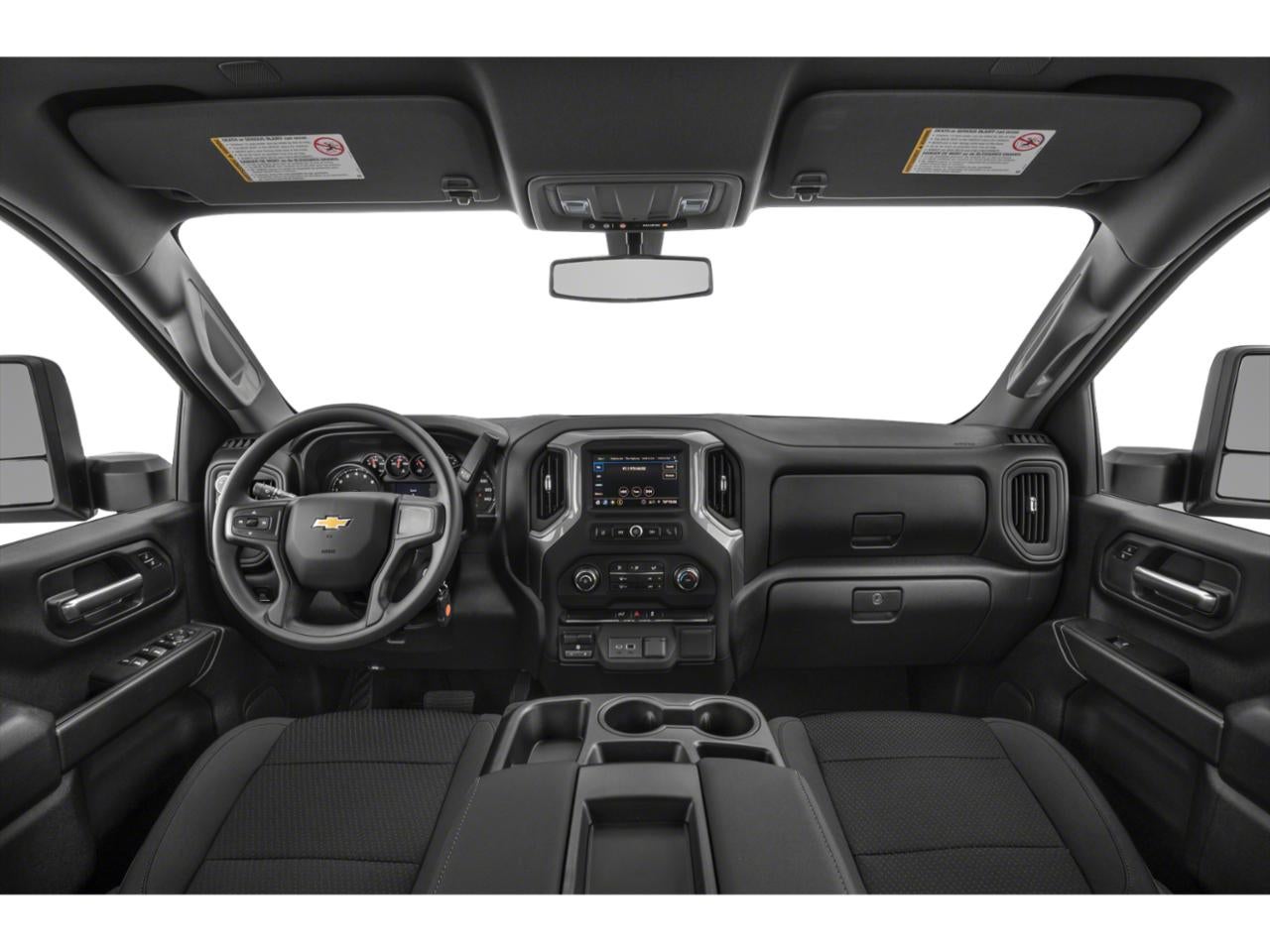

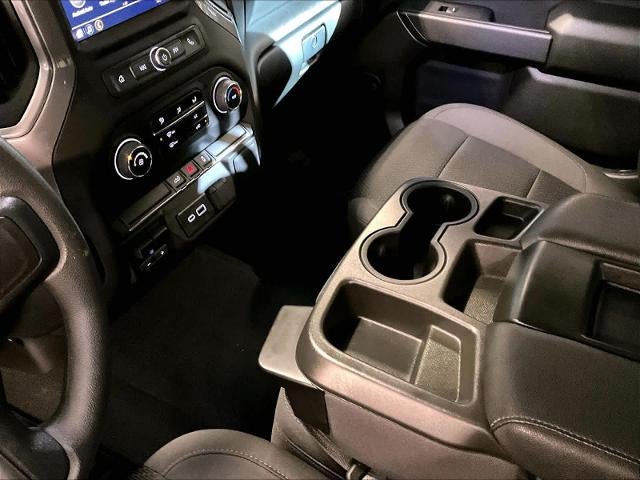

• Seats, front 40/20/40 split-bench with upper covered armrest storage with fixed lumbar
• Cloth seat trim
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

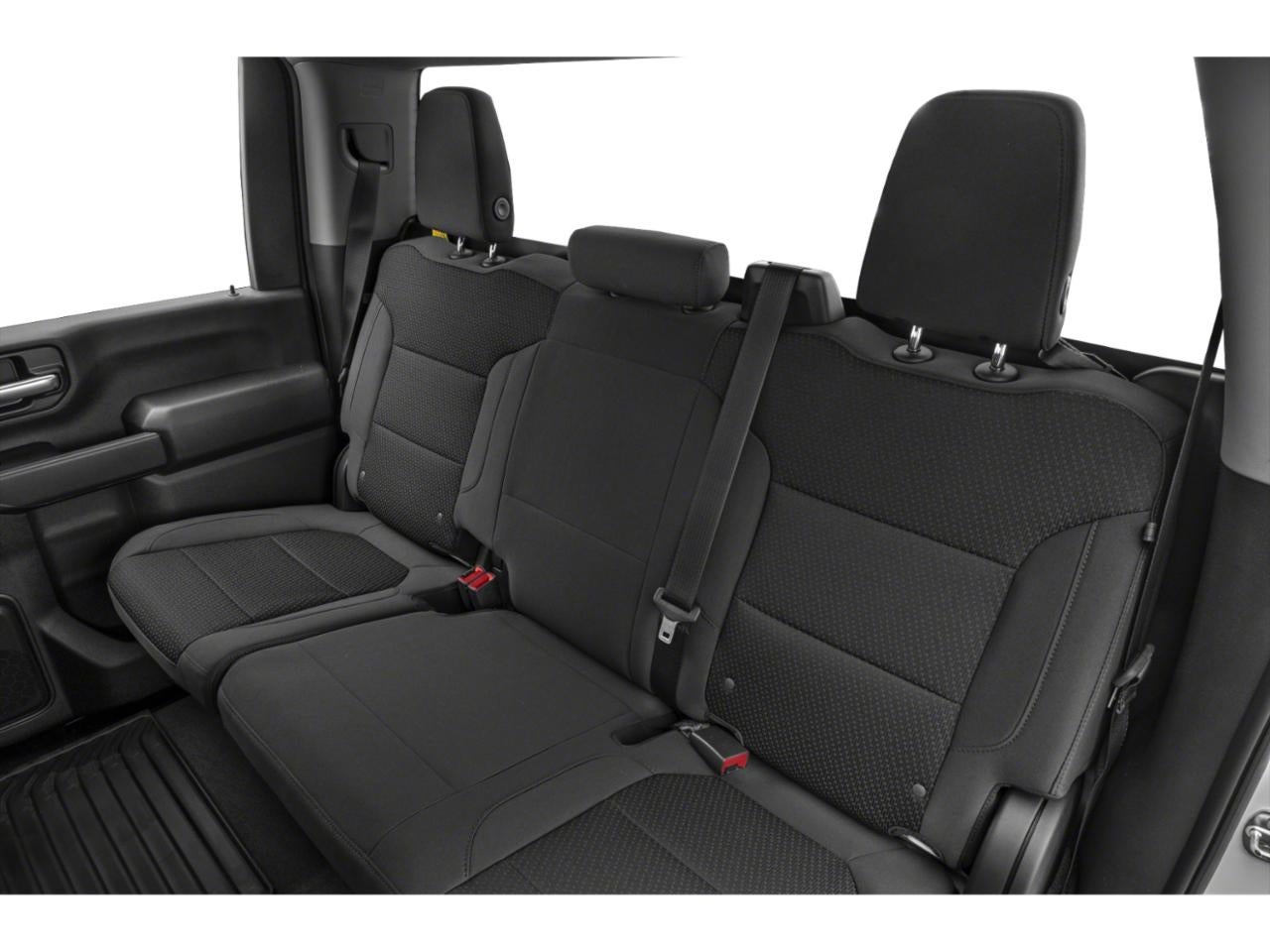

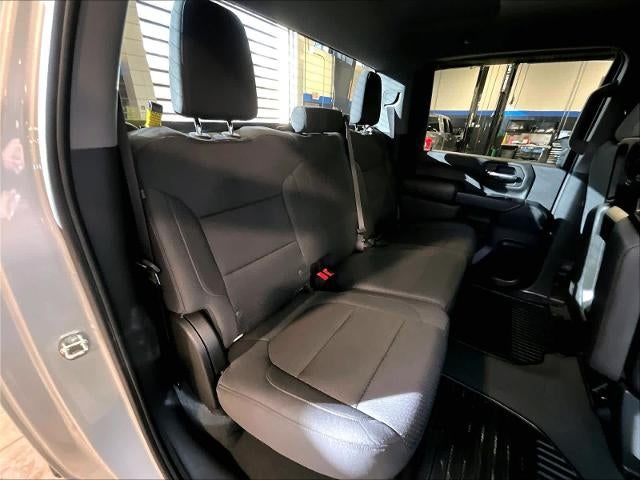

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting
• Floor mats, rubberized vinyl, front (Deleted when LPO floor liners are ordered.)
• Floor mats, rubberized-vinyl rear (Deleted when LPO floor liners are ordered.)

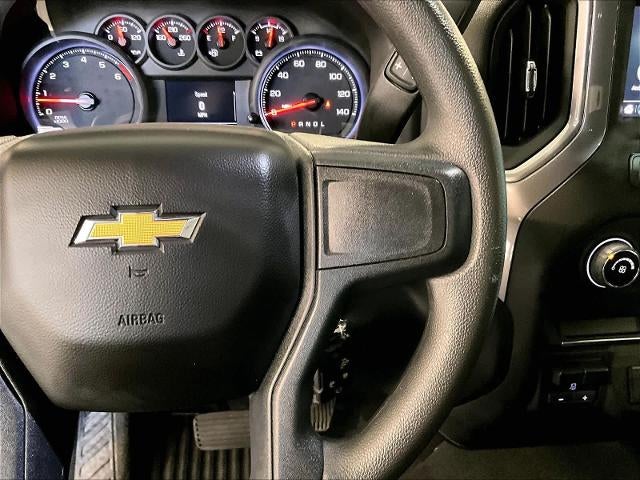

• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature

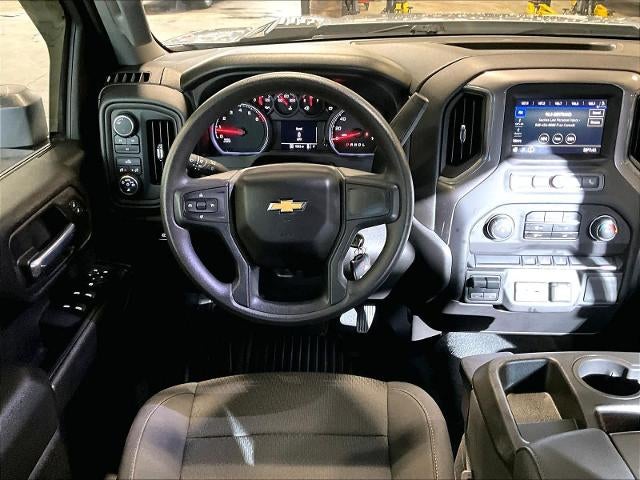

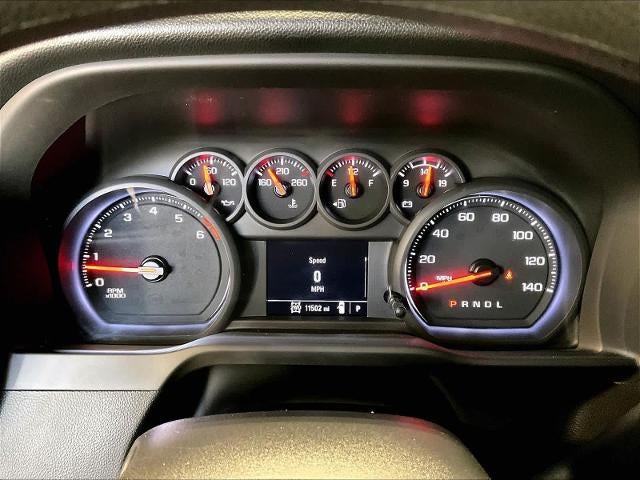

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Rear Seat Reminder
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down
• Door locks, power
• Remote Keyless Entry with 2 transmitters

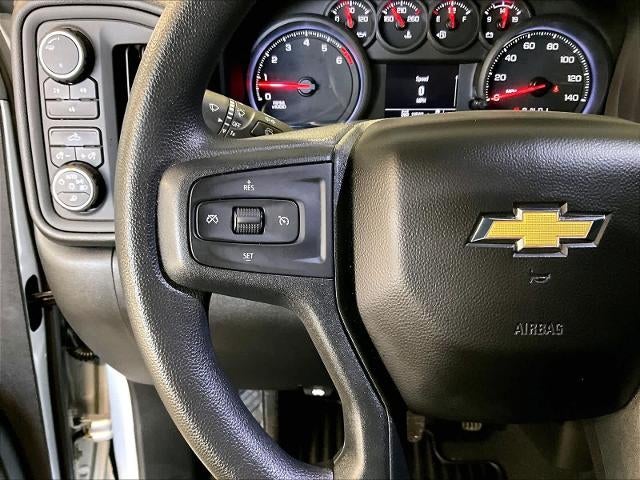

• Cruise control, electronic with set and resume speed, steering wheel-mounted

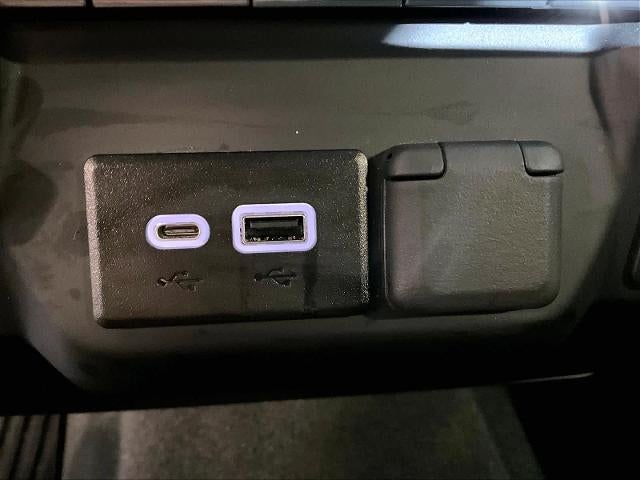

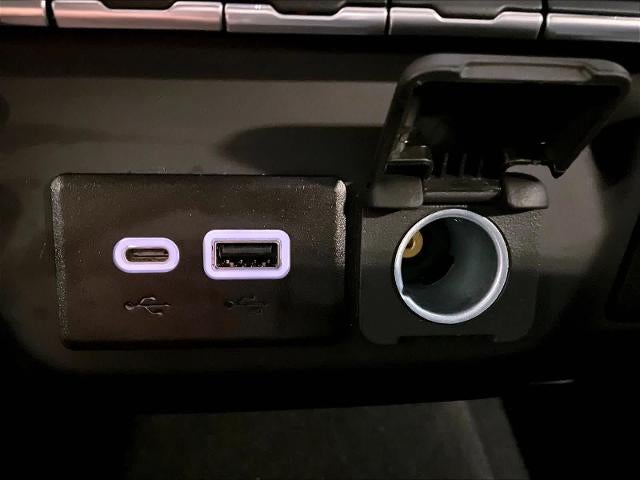

• USB ports, 2 (first row) located on instrument panel
• Power outlet, front auxiliary, 12-volt
• Air conditioning, single-zone
• Air vents, rear, heating/cooling
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• StabiliTrak stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

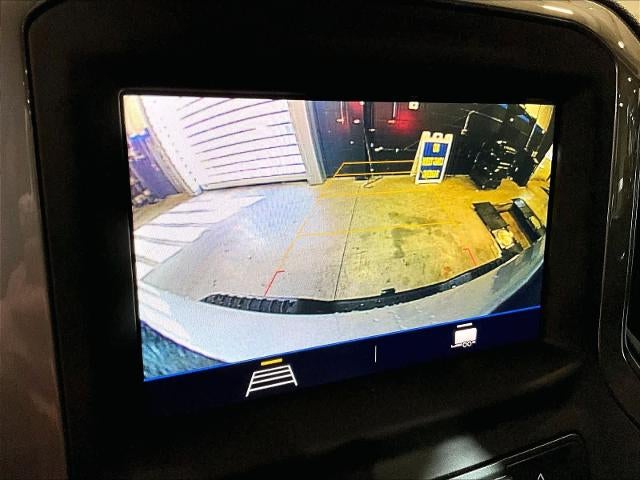

• Rear Vision Camera
• Hitch Guidance dynamic single line to aid in trailer alignment for hitching
• Seat Belt Adjustable Guide Loops, front row only
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering

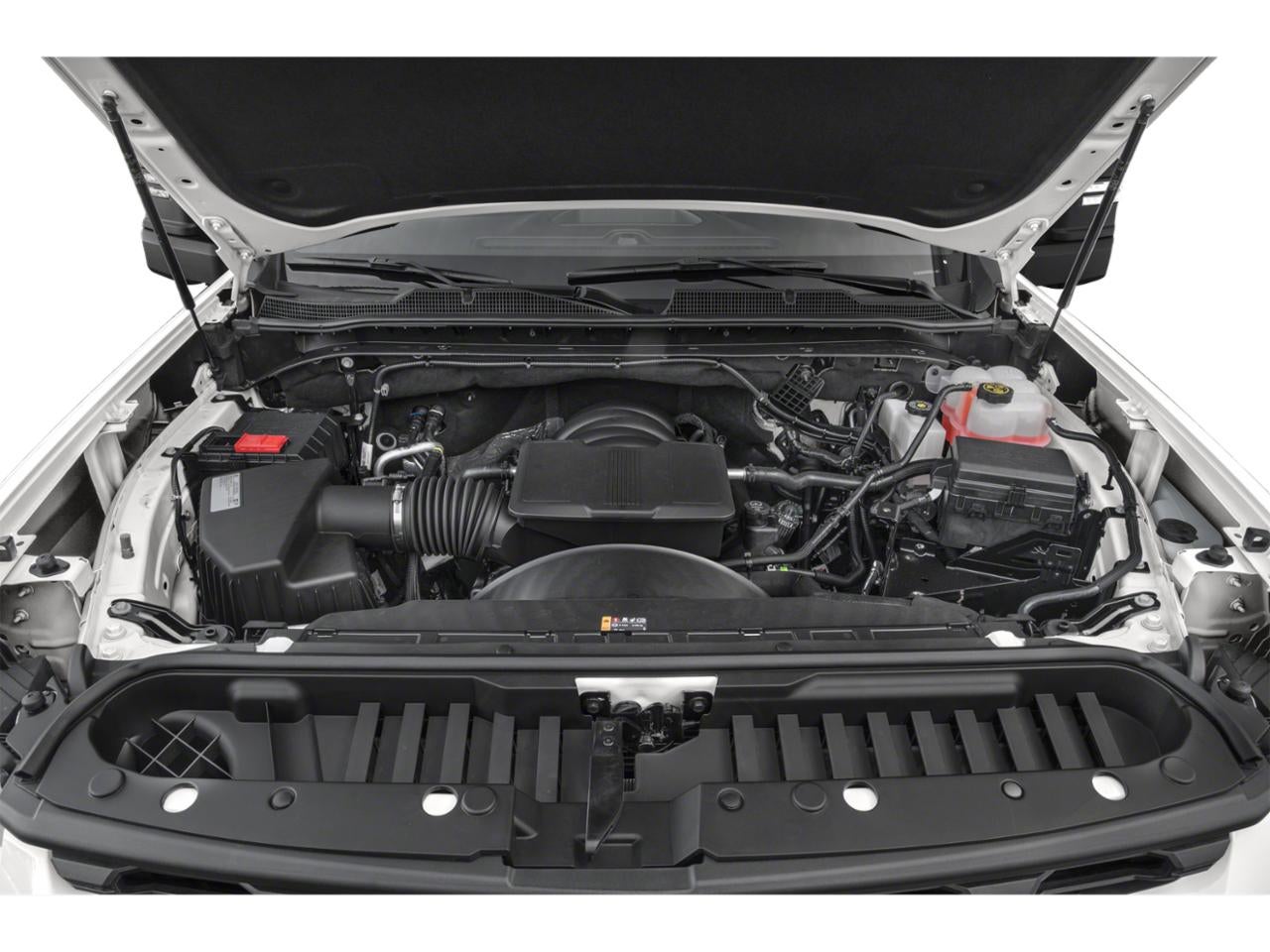

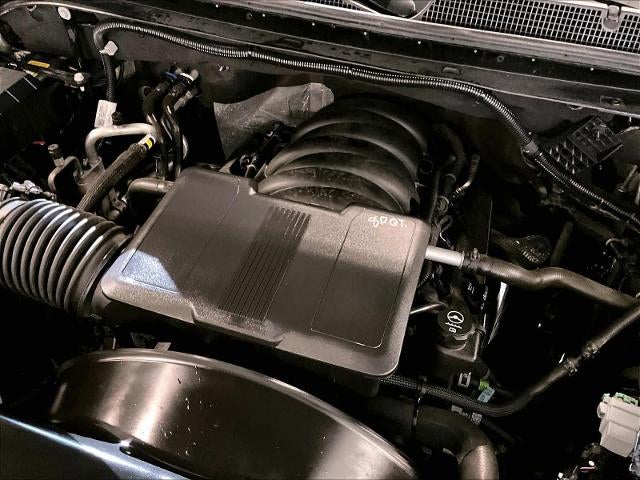

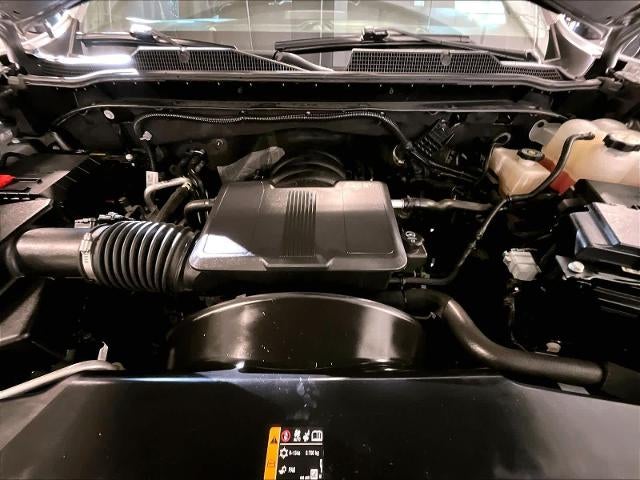

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 3849
• Curb Weight - Rear (lbs): 2784

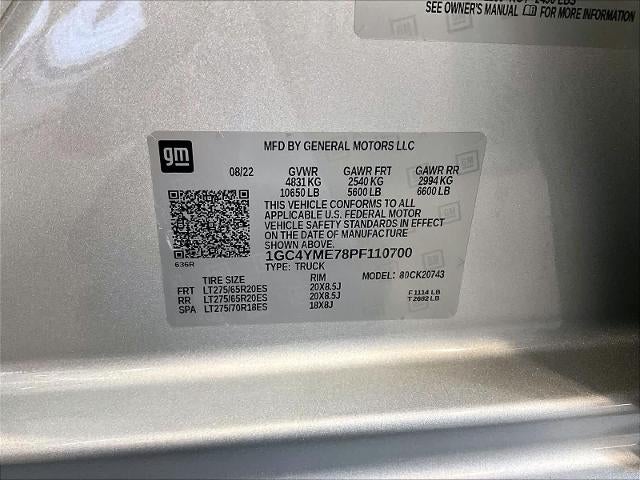

• Gross Vehicle Weight Rating Cap (lbs): 10650
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16650
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4162
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QF9
• Rear Tire Order Code: QF9
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/65R20
• Rear Tire Size: LT275/65R20
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x - TBD -
• Rear Wheel Size (in): 20 x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.7
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.94
• Length, Overall (in): 249.95
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.82
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.1
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.12
• Ground Clearance, Rear (in): 10.12
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.25
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary

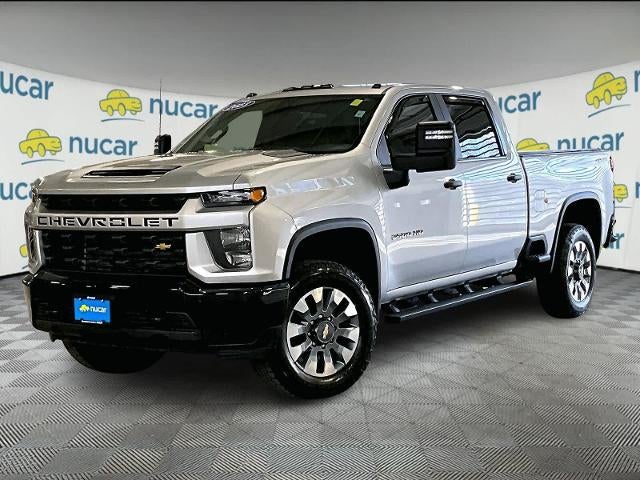

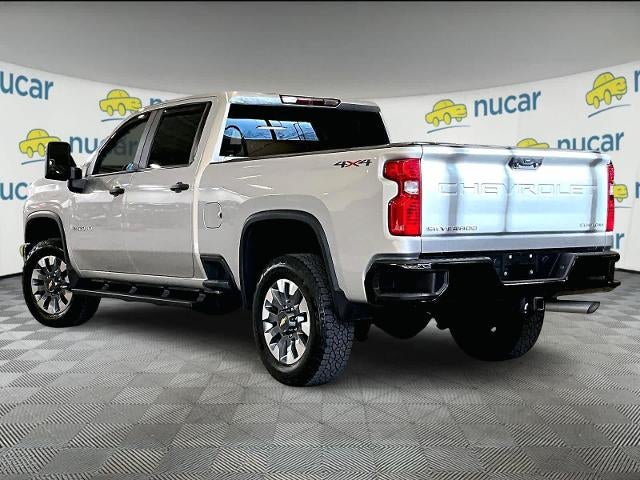

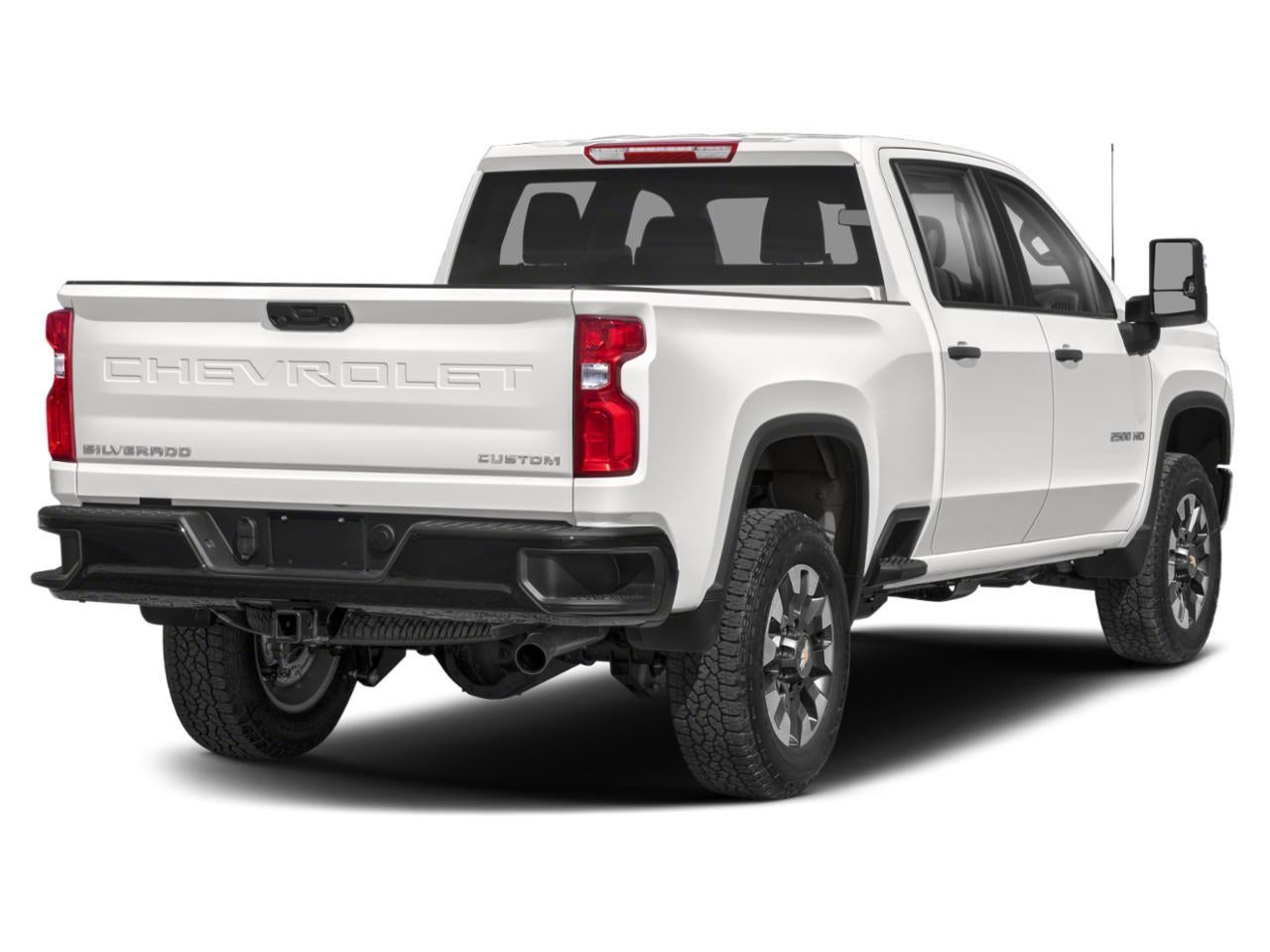

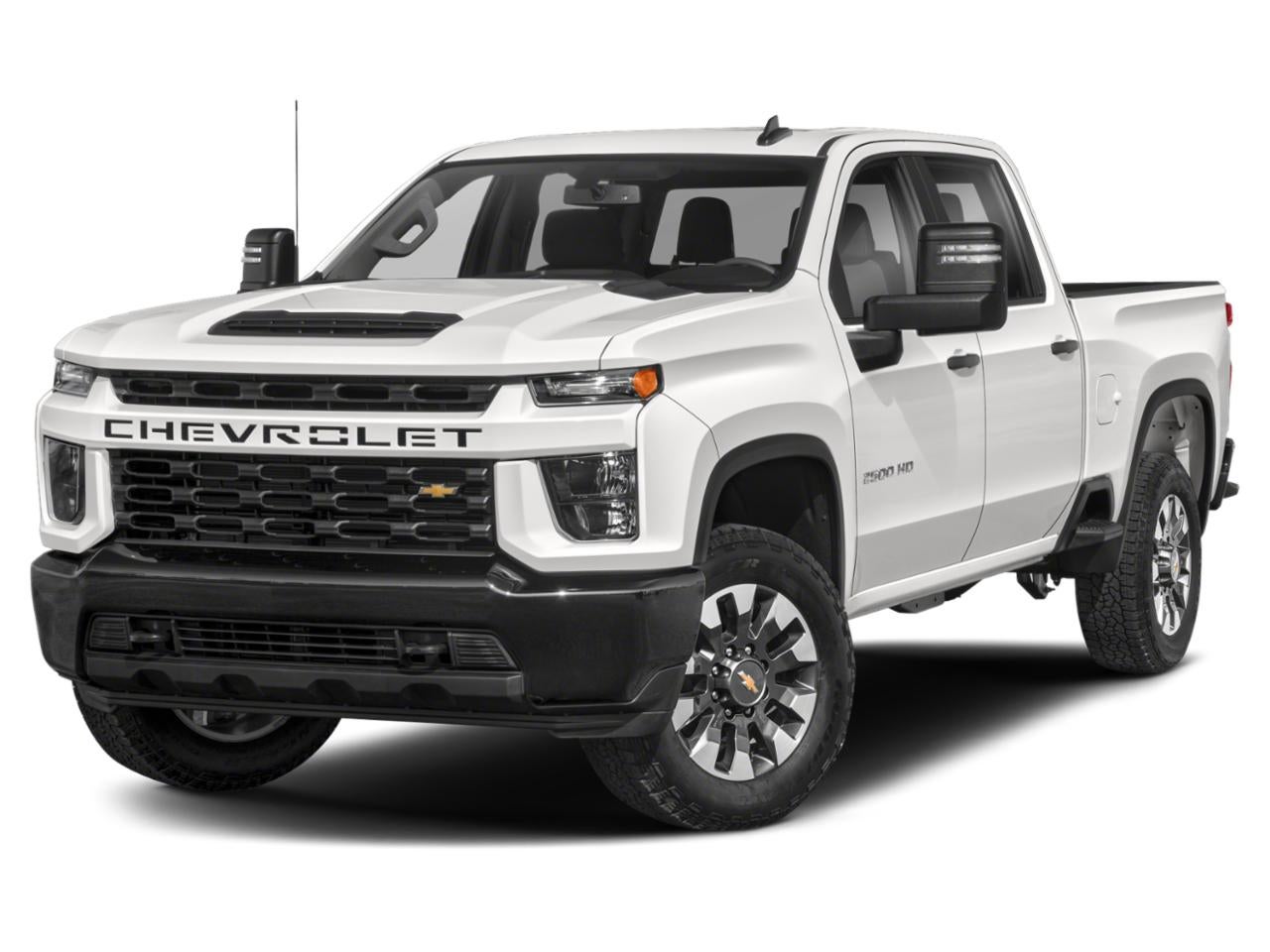

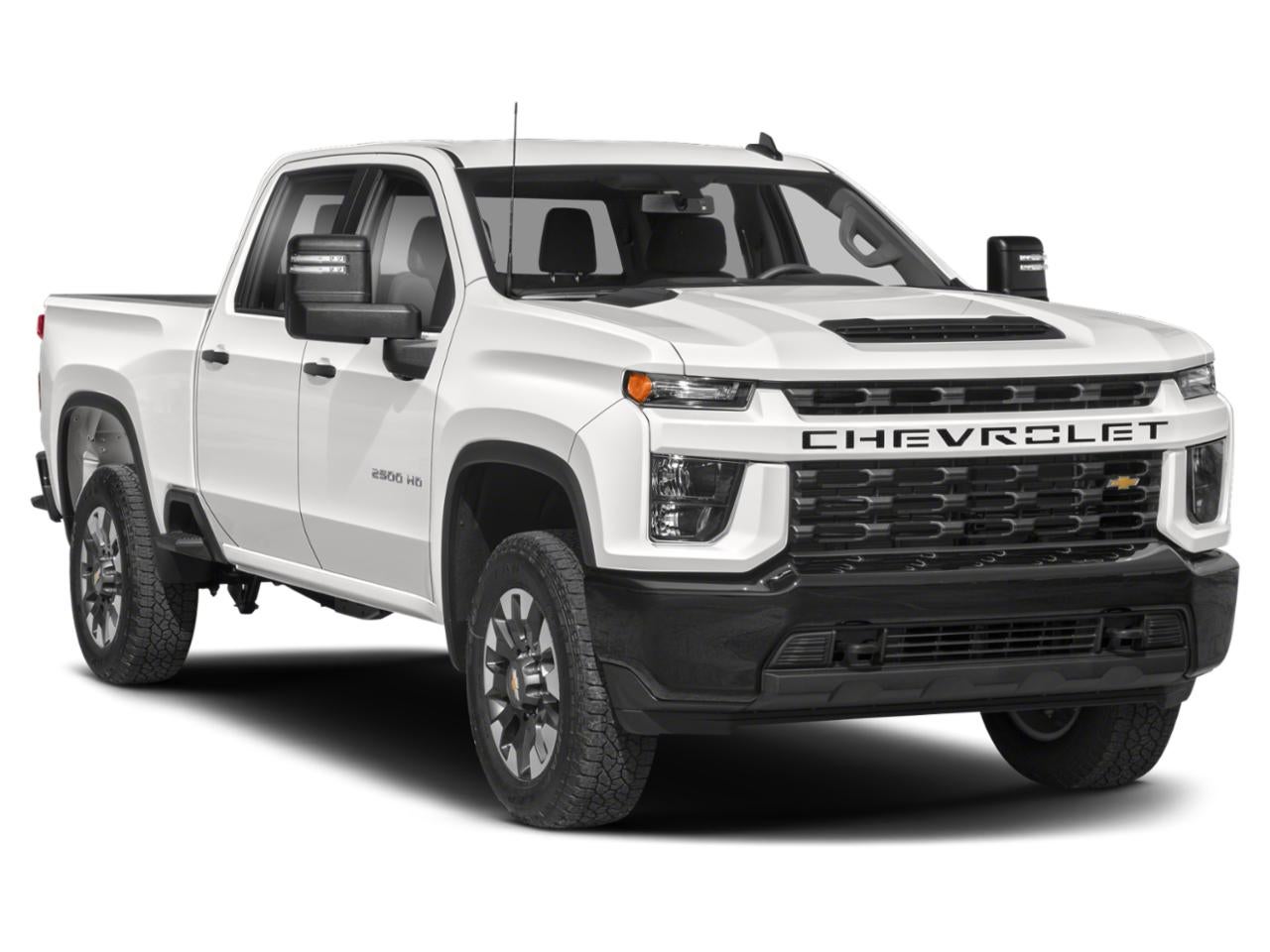

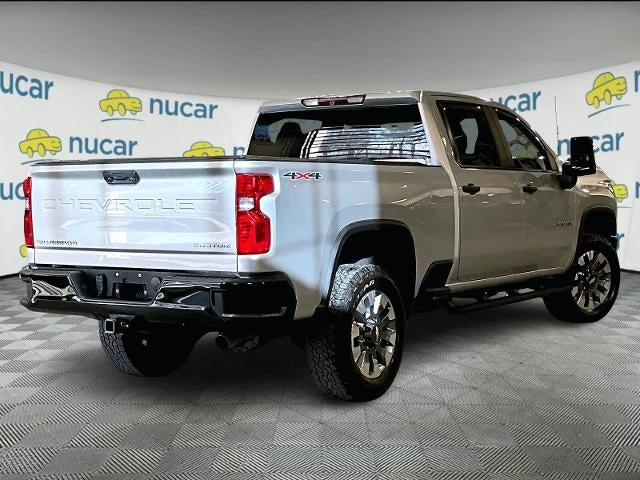

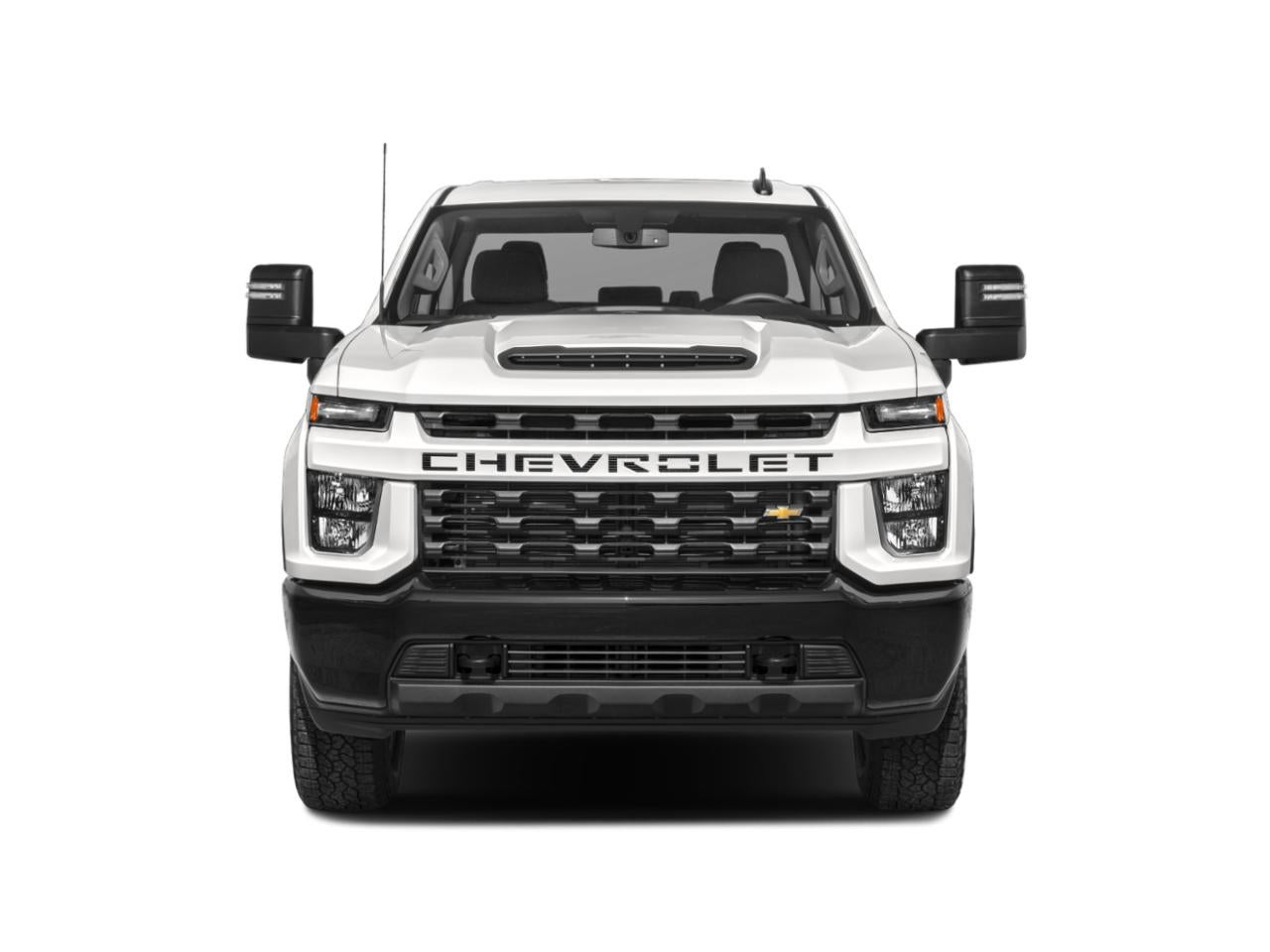

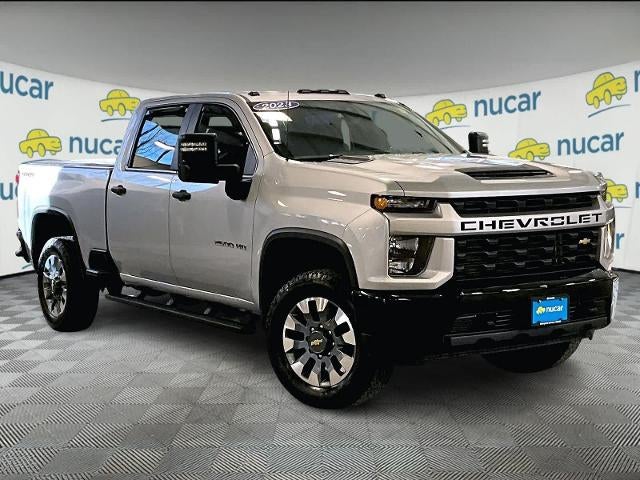

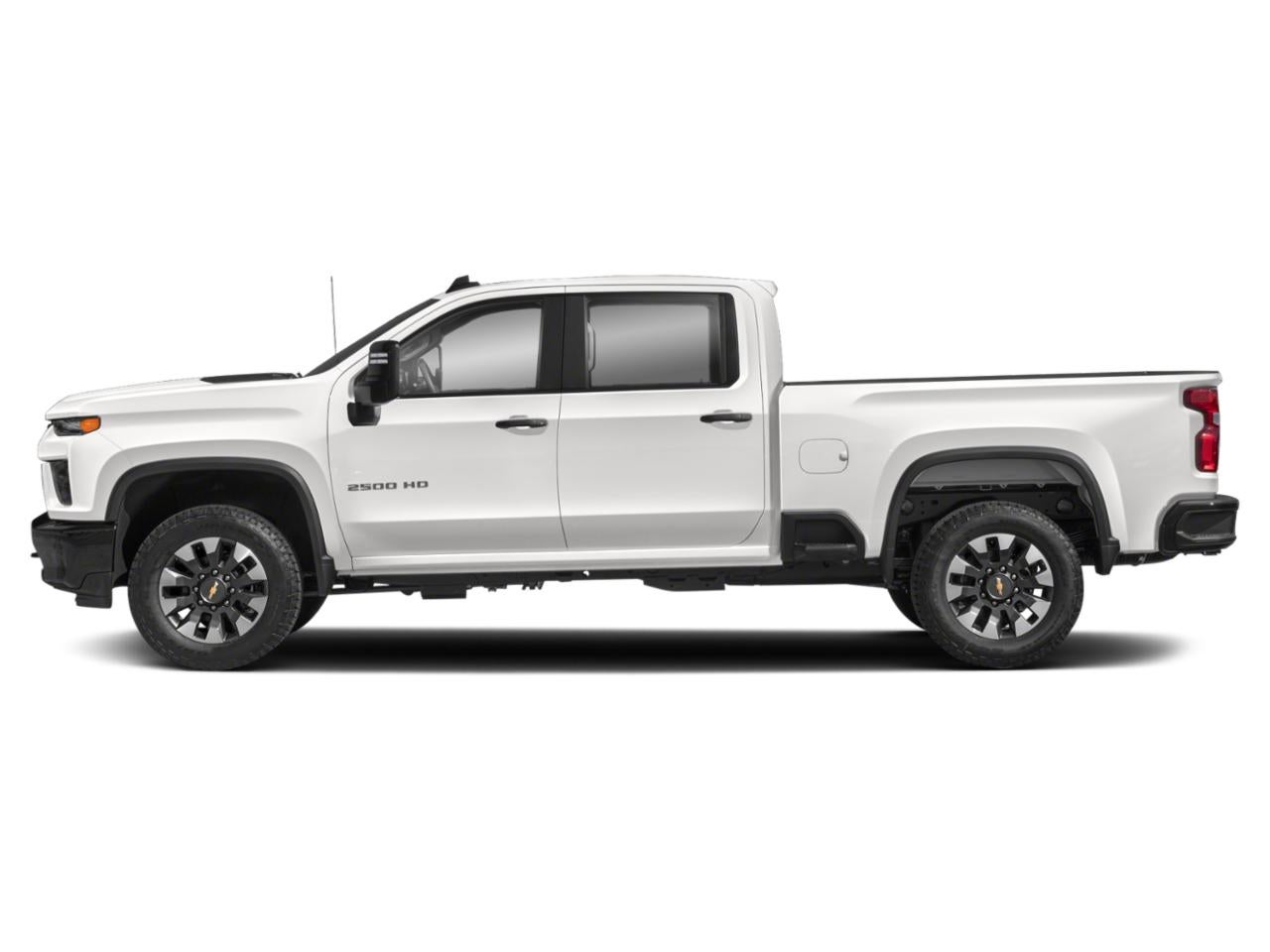

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
