• Side roof rails
• Body color fascias
• Accent color liftgate applique
• Halogen headlamps
• Fold-away manual mirrors
• Liftgate door w/fixed glass
• Variable intermittent windshield wipers
• Rear window wiper/washer

• Front bucket seats w/vinyl trim
• 60/40 split-folding rear seat
• Sliding armrest
• Full-length floor console
• Full floor carpeting
• Tilt steering column
• Instrumentation-inc: outside temp display, tachometer
• Sentry Key theft-deterrent system
• Air conditioning
• Rear seat heat ducts
• Rear window defroster
• AM/FM stereo w/CD player-inc: MP3 playback, aux input, (4) speakers
• 12-volt pwr outlet
• Tire pressure monitor
• Bright interior accents
• Sliding sunvisors w/vanity mirrors
• Front dome light
• Cargo compartment lamp
• Ultrafloor vinyl cargo floor covering
• Fold-flat cargo floor

• Multistage dual front airbags
• Front & rear side curtain airbags
• 4-wheel anti-lock brakes
• Electronic stability program w/roll mitigation

2.4L DOHC 16V I4 DUAL VVT ENGINE

• (STD)

• Quick Order Package 26D
• 4.12 Axle Ratio
• 16" x 6.5" Styled Steel Wheels
• Front Vinyl Tech Bucket Seats
• AM/FM Compact Disc
• Front License Plate Attachment Screws (DISC)
• Manufacturer's Statement of Origin
• Supplemental Front Seat Side Airbags
• 4 Speakers
• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Roof rack: rails only
• Rear window wiper
• Rear window defroster
• Rear anti-roll bar
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Front anti-roll bar
• Four wheel independent suspension
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• CD player
• Bumpers: body-color
• Brake assist
• AM/FM radio
• ABS brakes
• Tachometer
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicles
• Mileage
• EPA Fuel Economy Est - City (MPG): 22
• EPA Fuel Economy Est - Hwy (MPG): 27
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 525
• Maximum Alternator Capacity (amps): 120
• Cooling System
• Total Cooling System Capacity (qts): 7.2
• Weight Information
• Base Curb Weight (lbs): 3180
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 100
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Multi-link
• Suspension Type - Front (Cont.): Stabilizer bar
• Suspension Type - Rear (Cont.): Stabilizer bar
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x 1.0
• Rear Brake Rotor Diam x Thickness (in): 10.3 x 0.4
• Tires
• Front Tire Order Code: TLB
• Rear Tire Order Code: TLB
• Front Tire Size: P205/70R16
• Rear Tire Size: P205/70R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), Overall: 16.4
• Lock to Lock Turns (Steering): 2.88
• Turning Diameter - Curb to Curb (ft): 35.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 13.5
• Exterior Dimensions
• Wheelbase (in): 103.7
• Length, Overall (in): 173.6
• Width, Max w/o mirrors (in): 69.1
• Height, Overall (in): 64.4
• Track Width, Front (in): 59.8
• Track Width, Rear (in): 59.8
• Min Ground Clearance (in): 8.0
• Rear Door Opening Height (in): 27.4
• Rear Door Opening Width (in): 45.1
• Liftover Height (in): 30.5
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 38.0
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 54.2
• Cargo Volume to Seat 2 (ft³): 23.0
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 101.7
• Front Head Room (in): 41.0
• Front Leg Room (in): 40.6
• Front Shoulder Room (in): 54.0
• Front Hip Room (in): 52.3
• Second Head Room (in): 39.3
• Second Leg Room (in): 39.6
• Second Shoulder Room (in): 54.6
• Second Hip Room (in): 51.0
• Summary

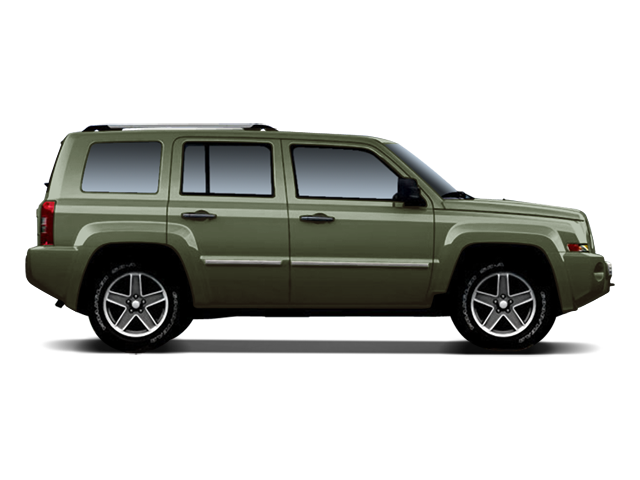

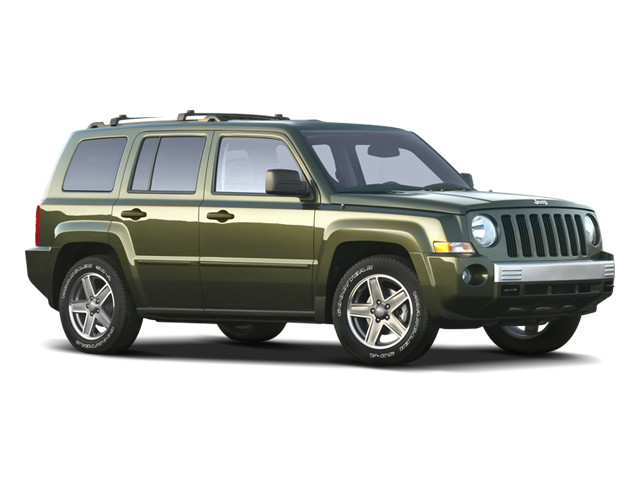

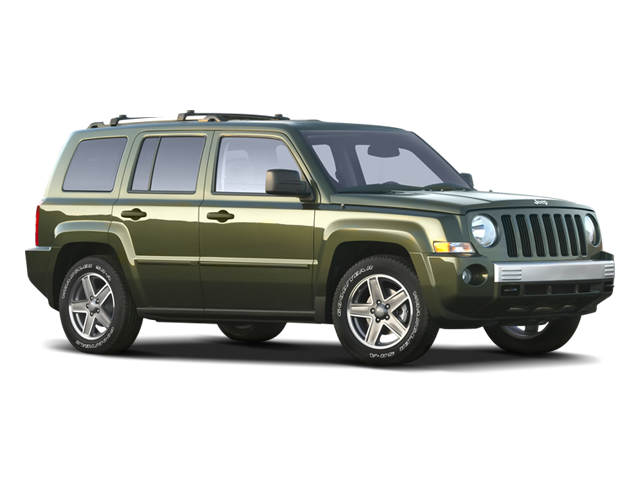

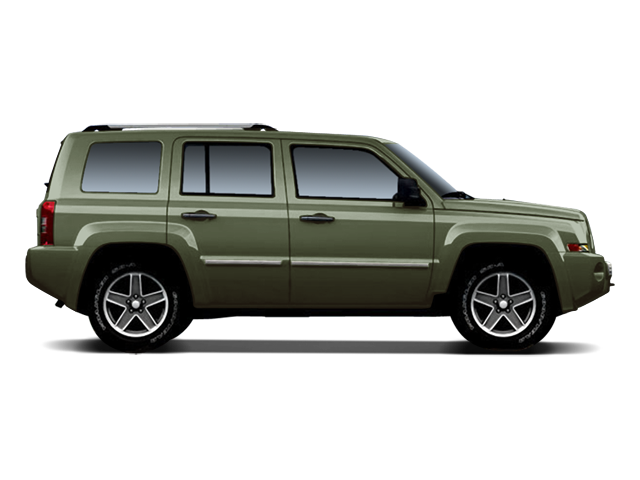

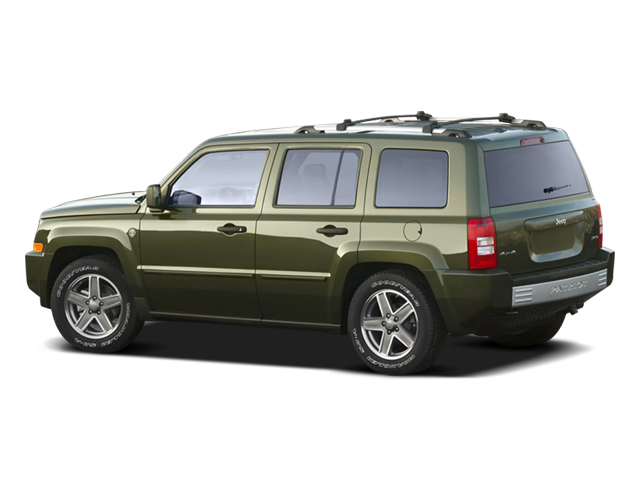

• Vehicle Name: Jeep Patriot
• Body Style: Sport Utility
